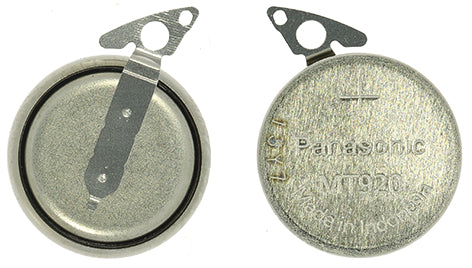

Seiko 3023 24X (No Returns)

Ensure your Seiko watch maintains accurate performance with this genuine Seiko 3023 24X rechargeable capacitor, complete with the factory-specified clip. Designed for select Kinetic and solar-powered models, this capacitor is a direct replacement part built for reliability and compatibility.

🔍 Check the Calibre – Not the Cell Number:

To determine the correct capacitor for your watch, always refer to the calibre number stamped on the watch movement. Do not rely on the number printed on the capacitor itself, as multiple capacitors can share the same cell number but have different clips soldered on. These differences make them incompatible across models despite similar appearances.

⚡ Charging Information:

New capacitors are not fully charged when shipped. After installation, they must be charged:

• Solar watches: Place in direct sunlight (e.g., on a windowsill).

• Kinetic watches: Wear the watch regularly to activate the internal rotor charging system.

Full charging may take some time. If the watch does not hold a charge after correct installation and charging, the issue is likely with the movement or charging circuit, not the capacitor itself.

🚫 No Returns Accepted on capacitors due to compatibility and electrical component handling.

✅ Compatible with the Following Calibre Numbers:

• 5J21 / 5J21A

• 5J22 / 5J22A

• 5J23 / 5J23A

• 5J32 / 5J32A

• 5S21 / 5S21A

• 5S22 / 5S22A

• 7D46 / 7D46A

• 7D48 / 7D48A

• 7D56 / 7D56A

🔢 Recognized Part Numbers:

• Seiko 3023 24X

• Seiko 3023-24X

• Seiko 302324X

Ensure a reliable power reserve and seamless timekeeping by replacing your old capacitor with the correct Seiko-approved component.
