3 litre (3 x 1) Microplating Unit

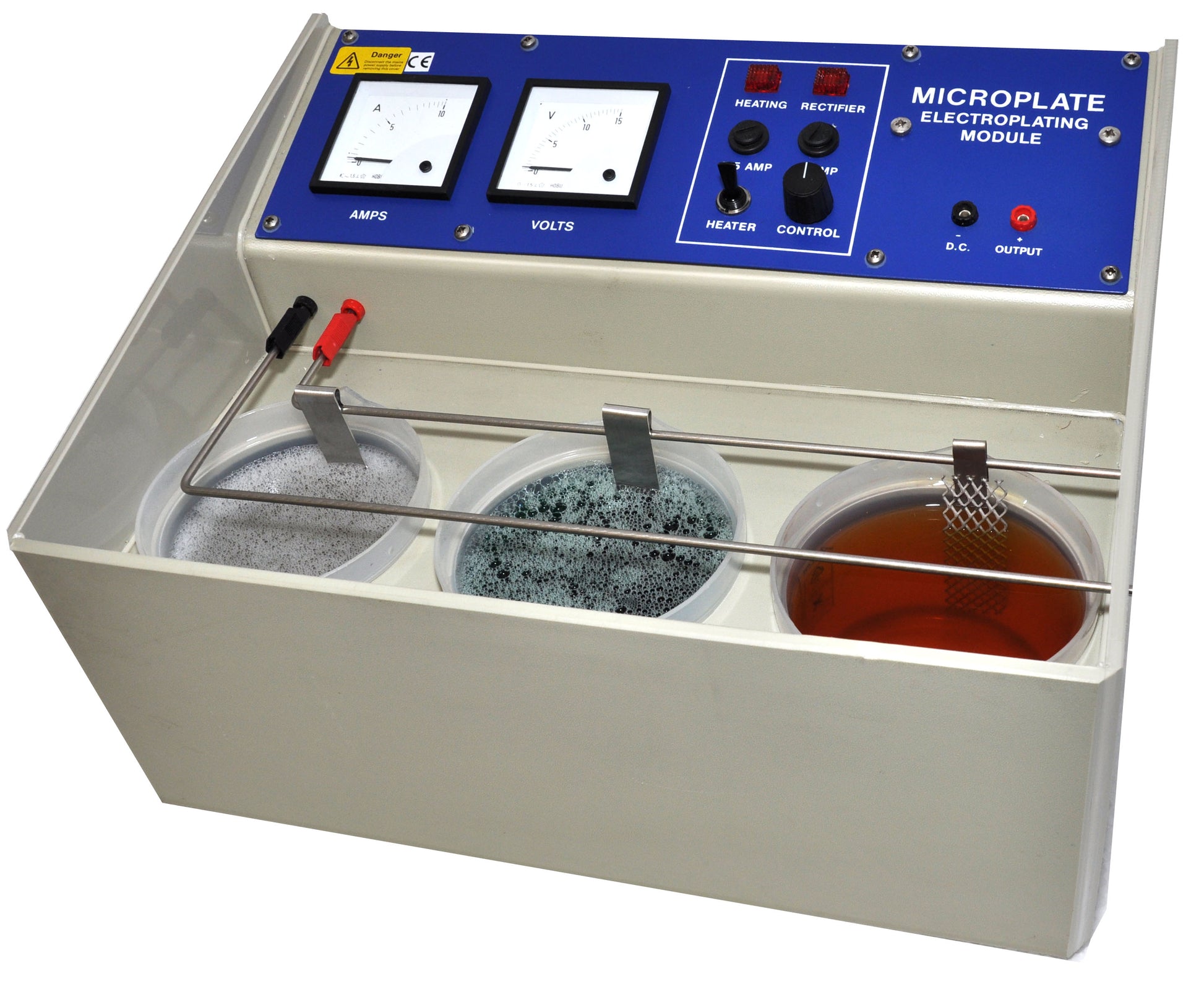

Microplating Unit – Compact Electroplating System

The Microplating Unit is a modular, small-scale electroplating system designed for jewellers who want to achieve professional finishes in their workshop. Suitable for gold, rhodium, silver, nickel, and copper, this compact unit makes plating, cleaning, and rinsing simple and reliable.

Key Features:

• Includes 3 × 1 litre beakers with a combined lid – set up for plating, cleaning, and rinsing simultaneously

• Supplied with 2 stainless steel anodes and 1 platinised titanium anode for versatile plating

• Constructed from polypropylene – acid-resistant with a melting point of 130 °C

• Easy to set up with the included installation and electroplating guide

• Compact design, perfect for workshops with limited space

• 1-year warranty for peace of mind

Functions & Uses:

• Plating baths:

  • Bath 1 – Electrolytic Salts for pre-cleaning

  • Bath 2 – Gilding Salts (9ct, 18ct, 22ct, 24ct, Rose, Silver

  • Bath 3 – Rhodium, with platinised titanium anode

• Anti-tarnish baths:

  • Bath 1 – De-tarn Cleaning Salts

  • Bath 2 – Silverbrite Salts

Specifications:

• Dimensions: approx. 48 × 35 × 25 cm (unit) / 420 × 180 × 340 mm (system footprint with beakers)

• Beakers: 3 × 1 litre (Ø130 mm × 120 mm)


Important Notes:

• Designed for small-scale use – not rated for continuous operation.

• To protect electrical components, do not run at maximum power for more than 5 minutes without a rest period. At lower currents, the process can be extended safely.

• Operating parameters vary depending on the metal being plated.
